Getting start:

The CPU(ESP32) of Nscreen32 having multiple develop ways.

You can use the official SDK ESP32 IDF here:

https://docs.espressif.com/projects/esp-idf/en/latest/esp32/get-started/index.html#installation-step-by-step
Or use Arduino ESP32:

https://github.com/espressif/arduino-esp32#readme
And you can use PlatformIO to manage your project:

PlatformIO for ESP IDF:
https://docs.platformio.org/en/latest/tutorials/espressif32/espidf_debugging_unit_testing_analysis.html#tutorial-espressif32-espidf-debugging-unit-testing-analysis

PlatformIO for Arduino ESP32:
https://docs.platformio.org/en/latest/tutorials/espressif32/arduino_debugging_unit_testing.html#tutorial-espressif32-arduino-debugging-unit-testing

For our demo:

Install PlatformIO
git clone https://github.com/yeacreate-opensources/Nscreen_32.githttps://github.com/yeacreate-opensources/Nscreen_32.git

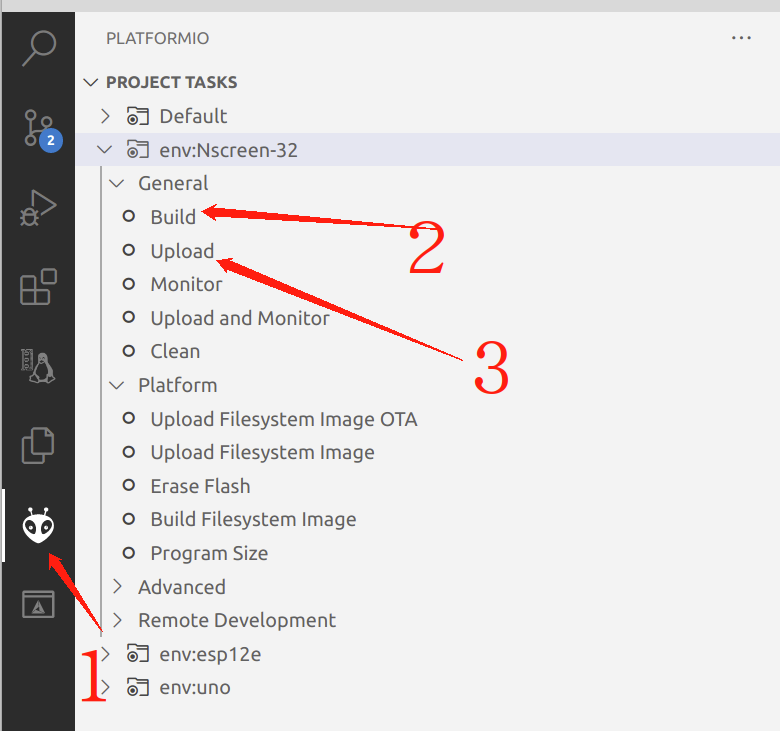

open the chose a demo you want,eg:lvgl_demo , open it via your editor (eg: Visual Studio Code), compile it and upload it to the board.

PS: If you do not need PSRAM, just remove "-DBOARD_HAS_PSRAM" and "-mfix-esp32-psram-cache-issue" in platformio.ini

For more develop details，please check here
